The Automotive Thread

Discussion in 'Permanent Threads' started by Backroom, Oct 19, 2009.

  1. GTE

    GTE
    Expand Collapse
    Emotionally Jaded

    Reputation:
    639
    Joined:
    Oct 20, 2009
    Messages:
    3,221
    Made some door panels for the Nova. Not bad for the first time really using a bead roller.

    Brushed aluminum
    [​IMG]

    It lines right up with the roll cage swing outs
    [​IMG]

    Here it is finished. I used a generic Dyna-Mat on the back side to deaden them up. They sound like 1/4" steel.
    [​IMG]

    Still a while until it's back on the road. Finish the fuel system, wire the EFI, finish the plumbing, possibly redo the exhaust cutouts as their way too low, cut down the driveshaft, make an intake tube blah blah blah

  2. toytoy88

    toytoy88
    Expand Collapse
    Alone in the dark, drooling on himself

    Reputation:
    1,264
    Joined:
    Oct 20, 2009
    Messages:
    8,763
    Location:
    The fucking desert. I hate the fucking desert.
  3. wexton

    wexton
    Expand Collapse
    Emotionally Jaded

    Reputation:
    371
    Joined:
    Oct 21, 2009
    Messages:
    3,341
    Location:
    North Coast BC
    Kind of looks like a ford GT40. Way to angular like the Cadillac CTS and such. Looks even more expensive then the regular corvette, going to be a hard sell.

  4. zzr

    zzr
    Expand Collapse
    Emotionally Jaded

    Reputation:
    123
    Joined:
    Oct 21, 2009
    Messages:
    748
    A mid-engine Corvette with a massaged Z06 engine would be the king of the hill. Chevy has to build it if they're going to stay in the game.

  5. toytoy88

    toytoy88
    Expand Collapse
    Alone in the dark, drooling on himself

    Reputation:
    1,264
    Joined:
    Oct 20, 2009
    Messages:
    8,763
    Location:
    The fucking desert. I hate the fucking desert.
    It looks to me like a Camaro fucked an Audi TT and that was the result.

  6. Nettdata

    Nettdata
    Expand Collapse
    Mr. Toast

    Reputation:
    3,016
    Joined:
    Feb 14, 2006
    Messages:
    26,911
    It's got some trailer-trash Challenger mixed in there as well...

    It's like a Ferrari 488 and a CTS tag-teamed a Challenger while an Aventador looked on while swimming at the Rio Olympics with their mouths open.

  7. Rush-O-Matic

    Rush-O-Matic
    Expand Collapse
    Emotionally Jaded

    Reputation:
    1,363
    Joined:
    Nov 11, 2009
    Messages:
    12,570
    It looks like they went to Chip Foose five years ago and asked, hey can you sketch us a concept car to be used in a movie set five years in the future? And, then they built that.

  8. dixiebandit69

    dixiebandit69
    Expand Collapse
    Emotionally Jaded

    Reputation:
    875
    Joined:
    Oct 20, 2009
    Messages:
    4,422
    Location:
    The asshole of Texas
    I dunno, man, it doesn't look like a Corvette anymore. I, for one, was disappointed when they got rid of hide-away headlights on the 'Vettes.

    Of course, I would never own ANY Corvette (I'll stick with my cheap Pontiac), but I still find them interesting.

    On a semi-related note, the college where I'm finishing my Diesel Tech degree hosts the GM ASEP program, and that means that it gets lots of vehicles and parts donated from GM.

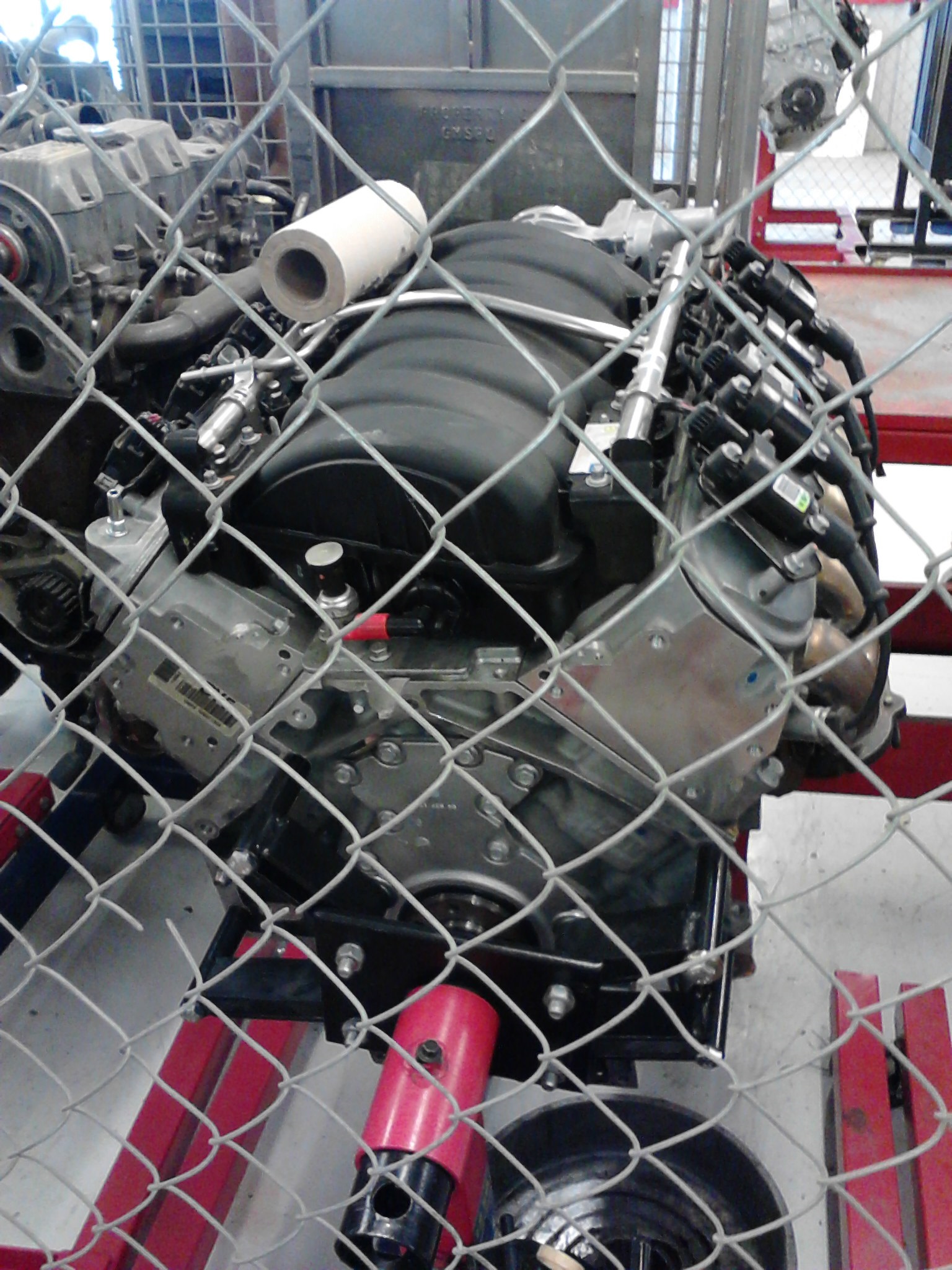

    The other day I was walking through one of the storage areas, and they had FOUR LS7 engines*. Just sitting there. Not doing anything. There were even a couple of LS3s. Do y'all have any idea what I could do with one of those bad-boys?
    The worst part is that all donated parts must be destroyed once they are finished with them; they can't even be auctioned off. Fuck. LS7.jpg

    *For those of you who aren't up on GM engine codes (Which always begin with "L," by the way), the LS7 was the 7.0L/427ci V8 that was only available in the Corvette.

  9. Rush-O-Matic

    Rush-O-Matic
    Expand Collapse
    Emotionally Jaded

    Reputation:
    1,363
    Joined:
    Nov 11, 2009
    Messages:
    12,570
    Get back to prison faster?

  10. wexton

    wexton
    Expand Collapse
    Emotionally Jaded

    Reputation:
    371
    Joined:
    Oct 21, 2009
    Messages:
    3,341
    Location:
    North Coast BC
    And only for a few years with the z06 option. Sweet engine

  11. toytoy88

    toytoy88
    Expand Collapse
    Alone in the dark, drooling on himself

    Reputation:
    1,264
    Joined:
    Oct 20, 2009
    Messages:
    8,763
    Location:
    The fucking desert. I hate the fucking desert.
  12. Trakiel

    Trakiel
    Expand Collapse
    Call me Caitlyn. Got any cake?

    Reputation:
    245
    Joined:
    Nov 3, 2009
    Messages:
    3,167
    Location:
    St. Paul, MN
    The fuck?

  13. toytoy88

    toytoy88
    Expand Collapse
    Alone in the dark, drooling on himself

    Reputation:
    1,264
    Joined:
    Oct 20, 2009
    Messages:
    8,763
    Location:
    The fucking desert. I hate the fucking desert.
    It's a liability thing. If somehow, anyhow they can be sued, it must be destroyed.

  14. toytoy88

    toytoy88
    Expand Collapse
    Alone in the dark, drooling on himself

    Reputation:
    1,264
    Joined:
    Oct 20, 2009
    Messages:
    8,763
    Location:
    The fucking desert. I hate the fucking desert.
    #1894 toytoy88, Aug 11, 2016
    Last edited: Aug 11, 2016
  15. dixiebandit69

    dixiebandit69
    Expand Collapse
    Emotionally Jaded

    Reputation:
    875
    Joined:
    Oct 20, 2009
    Messages:
    4,422
    Location:
    The asshole of Texas
    Did I tell y'all that Jungle Julia and I have his and hers Firebirds? Because we do:
    The picture was her idea; she said that she wanted our cars "ass to ass." Taken outside my shop. Firebirds.jpg

  16. Rush-O-Matic

    Rush-O-Matic
    Expand Collapse
    Emotionally Jaded

    Reputation:
    1,363
    Joined:
    Nov 11, 2009
    Messages:
    12,570
    2004, Chevy Silverado, 4.8L Vortec.

    I finally got around to changing the gaskets on my valve covers. I don't think that was the leak. The old gaskets (13 years old and 344K miles) looked brand new - no tears, cracks or anything. But, I replaced them anyway. The oil fill spout was actually displaced, with the gasket bulging out. I twisted it out and reseated it. I don't know if that may have been where the leak was or not. The leak is showing like one drop a day in my garage, but it's enough to be building up gunk on the engine. Also, the valve springs and rocker arms on both sides had a nice worn amber / bronze color, and the inside of the passenger valve cover did too. But, the driver's side valve cover looked like it had some charring. A hundred thousand miles ago or so, I was getting a "lean" error code, and had to clean the throttle body to keep the computer from being mad at me. Don't know if that was a residual effect from that period or an indicator I'm about to have trouble. Anyway, the reason I am posting is this:

    What sorts of things should I check if I am getting high oil pressure at higher RPMs?

    About six weeks ago, I noticed my oil pressure gauge was pegged at 80 all the time. The oil sending unit was bad, and I changed that. At idle it was 40, and would bump up at higher rev. Now, if I'm running highway speeds and have to get on the gas to pass or go up a hill, the needle with peg at 80. The oil filter may just be clogged (?). I am getting my oil changed today, so I'll know that answer soon. A friend suggested:
    - the replacement oil sending unit is bad
    - the oil pump bypass line is clogged

    Anything else I should look into?

  17. Flat_Rate

    Flat_Rate
    Expand Collapse
    Emotionally Jaded

    Reputation:
    132
    Joined:
    Apr 26, 2010
    Messages:
    2,495
    Your sending unit is bad, or the cluster gauge is getting worn, those trucks have issues with the gauge panels.

    What kind of filters do you run?

  18. Rush-O-Matic

    Rush-O-Matic
    Expand Collapse
    Emotionally Jaded

    Reputation:
    1,363
    Joined:
    Nov 11, 2009
    Messages:
    12,570
    Well, crap. Thank goodness it's got a lifetime warranty. I would've thought that sending unit would last more than a few weeks! Back to Advance I go. And, I doubt it's the cluster gauge, as I got a whole new one a couple years ago when I had to replace the BCM and PCM.

    I have no idea. The shop where I take my truck does the oil & filter change cheaper than I can do it myself, and though I've discussed the oil itself, I've never asked about the filter.

    And, nothing during the oil change had any effect on the high pressure reading. After trying to discuss possibility of the bypass line being clogged and the "asst. mgr. Walt" spending ten minutes trying to sell me on the various engine treatments they offer, instead of giving me any indication he even knew where the oil pump was, I may be taking my truck somewhere else from now on anyway.

  19. Improper

    Improper
    Expand Collapse
    Disturbed

    Reputation:
    131
    Joined:
    Oct 20, 2009
    Messages:
    486
    Chevrolet trucks in that age range tend to see their oil pressure send unit take a dump if you change out the battery or the alternator. It's like they get stuck on the old voltage and break when you put in newer, hotter power. No idea if you did or didn't, just mentioning it.

  20. Flat_Rate

    Flat_Rate
    Expand Collapse
    Emotionally Jaded

    Reputation:
    132
    Joined:
    Apr 26, 2010
    Messages:
    2,495
    If you're taking your truck to a quick lube joint for oil changes, stop. They will put the cheapest filter the can on your truck because margins on a 30 dollar oil change suck. If you are capable of changing your sending unit you're more than capable of changing your own oil.

    For Chevy LS engines you want a Napa Gold or a Puralator Gold filter, WIX makes the Napa Gold filters but I don't have the part number in front of me. These are quality filters with anti drain back check valves in them. Early LS engines suffered from tick noises and low pressure at idle. Those filters will fix most of that. Any Delco filter that ends with an "E" avoid at all costs, these are junk and not worth using.

    An engine with your mileage will benefit from a bit more oil pressure, LS engines run less than 15 PSI hot if you were to check it with an manual gauge. Your panel cluster gauge is "massaged" by the ECM because customers wouldn't like seeing such low pressure out of a new motor.
